Dicer Rühle AR 10, 1700kg/h
Dimensions Length: 1,070 – 1,900 mm Width: 690 – 890 mm Height: 1,040 mm Weight: 245 kg Connection: 400 V, 3.8 kW, 16 A Capacity: max 1,700 kg/h Chamber: 100x350 mm Thickness: 0.5 – 60 mm Temperature: -5°C – +80°C Tools: 3, 5, 6, 8, 10, 12, 15, 16, 20, 24, 30, 50mm
Dicer Rühle AR 10 Basic
Dimensions Length: 1,070–1,502mm Width: 700–896mm Height: 1040mm Weight: 245kg Connection: 400V, 3.8kW, 16A Capacity: max 1,700kg/h Chamber: 100x350mm Thickness: 0.5–60mm Temperature: -5°C – +80°C Tools: 3, 5, 6, 8, 10, 12, 15, 16, 20, 24, 30, 50mm

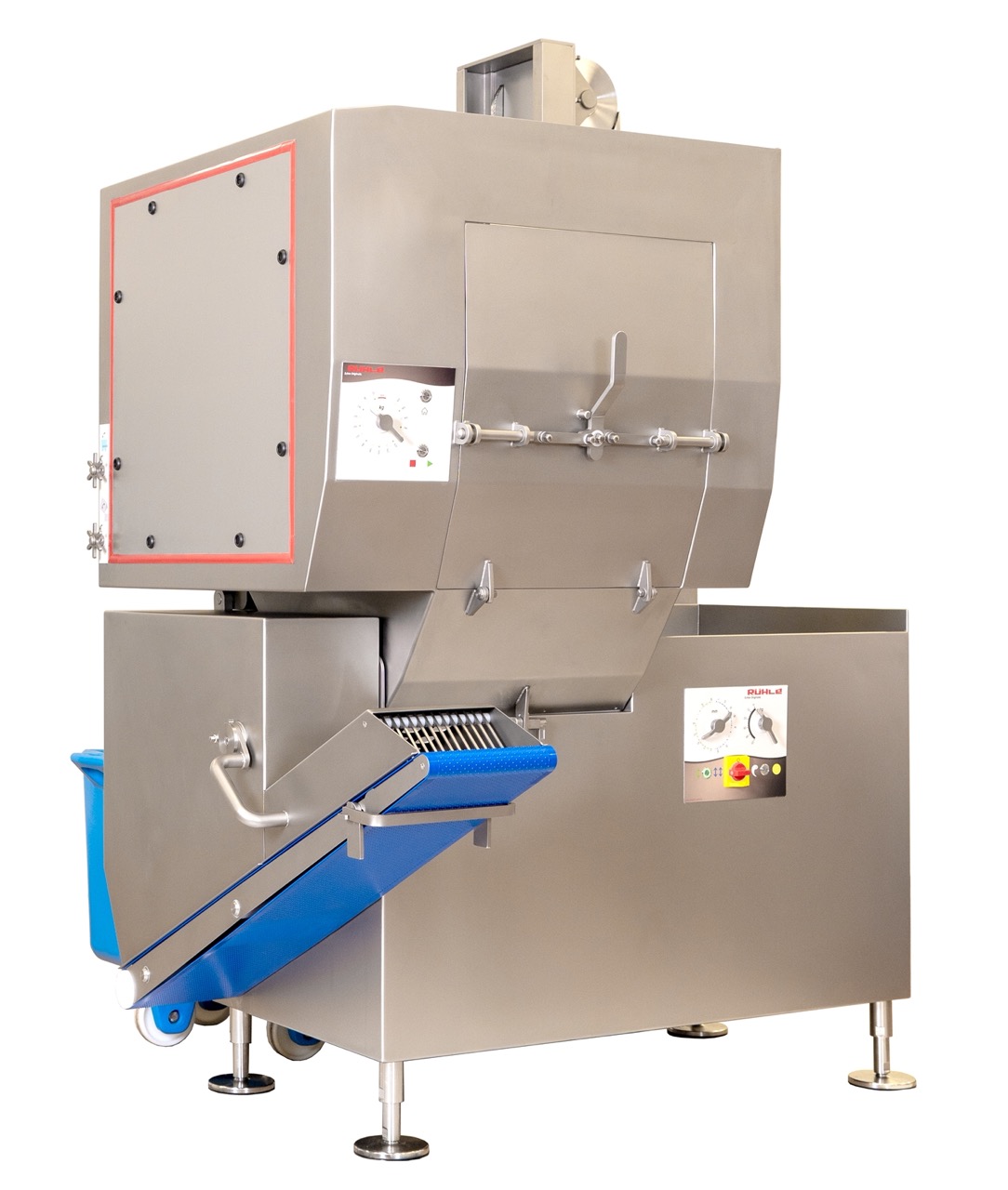

Dicers AR 30 Plus 3500kg/h
Dimensions Length:1740–2660mm Width: 2060–2120 mm Height:2430-2700 mm Weight: 1500kg Connection: 400 V, 9.1 kW, 32 A Capacity: max 3500 kg/h Chamber: 120x120x600 mm Thickness: 0.5 – 60 mm Temperature: -5°C – +80°C Tools: 5, 10, 20, 60/6, 12,24,60/7, 15,30,60

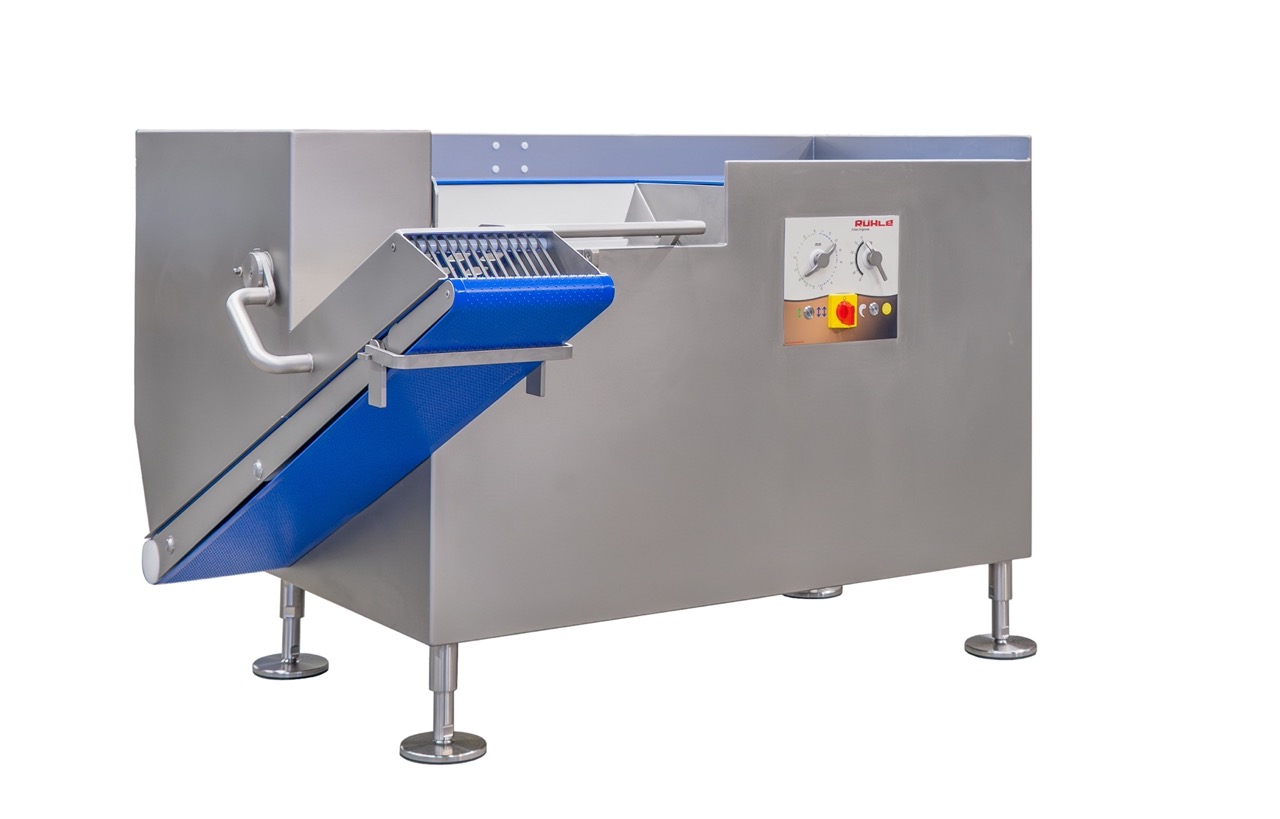

Dicer Rühle AR 30, 3000kg/h
Dimensions Length: 1240–2660mm Width: 1350–1800 mm Height: 1250-1400 mm Weight: 520kg Connection: 400 V, 4.9 kW, 32 A Capacity: max 3000 kg/h Chamber: 120x120x600mm Thickness: 0.5 – 60 mm Temperature: -5°C – +80°C Tools: 5, 10, 20, 60/6, 12, 24, 60/7, 15, 30, 60

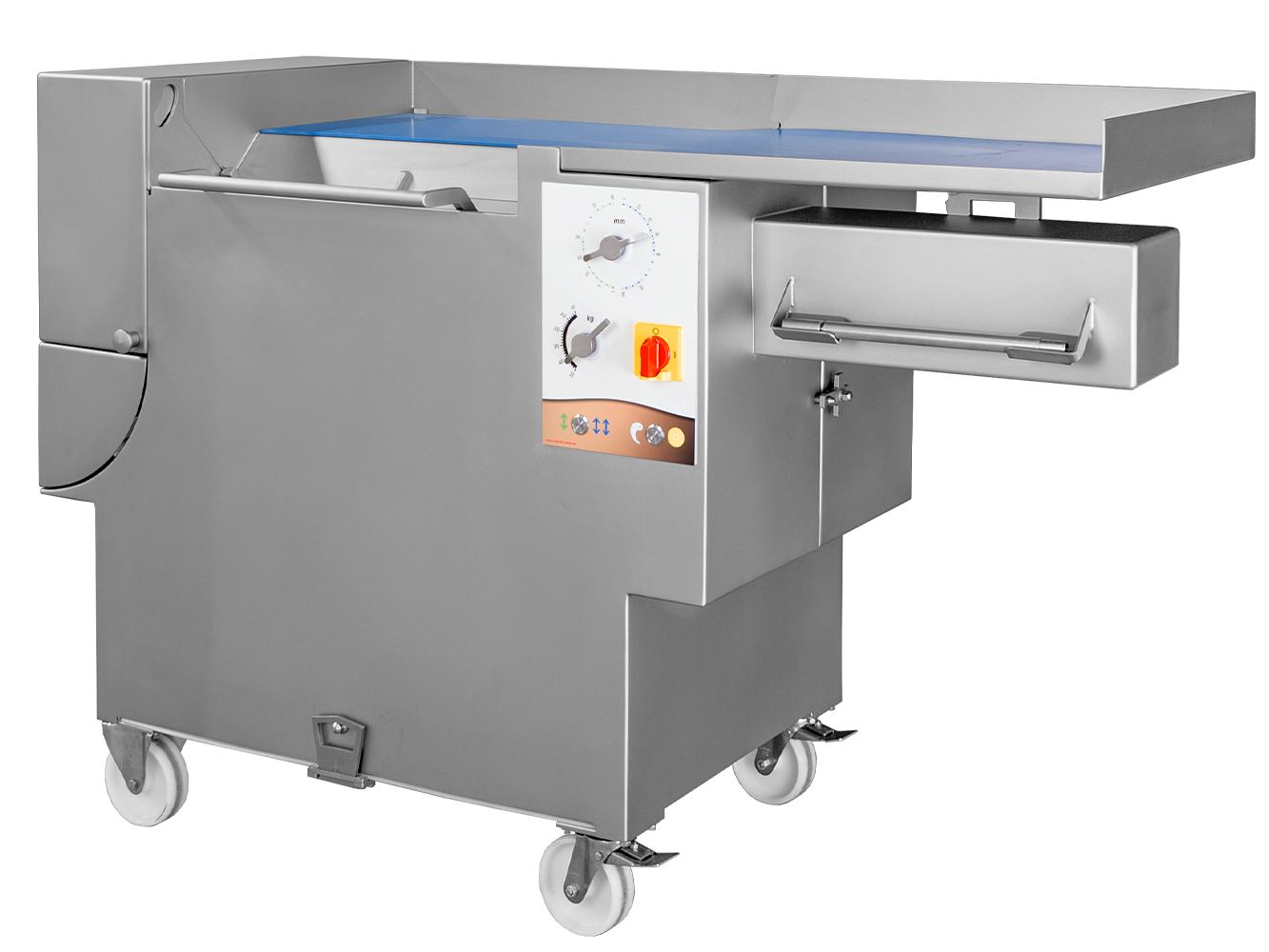

Dicer Rühle AR 20, 2300kg/h
Dimensions Length: 1540–1,970mm Width: 690–890 mm Height: 1040-1650 mm Weight: 330kg Connection: 400 V, 3.8 kW, 16 A Capacity: max 2300 kg/h Chamber: 100x350 mm Thickness: 0.5 – 60 mm Temperature: -5°C – +80°C Tools: 3, 5, 6, 8, 10, 12, 15, 16, 20, 24, 30, 50mm
